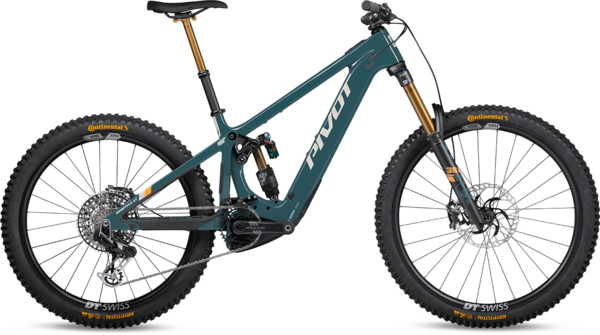

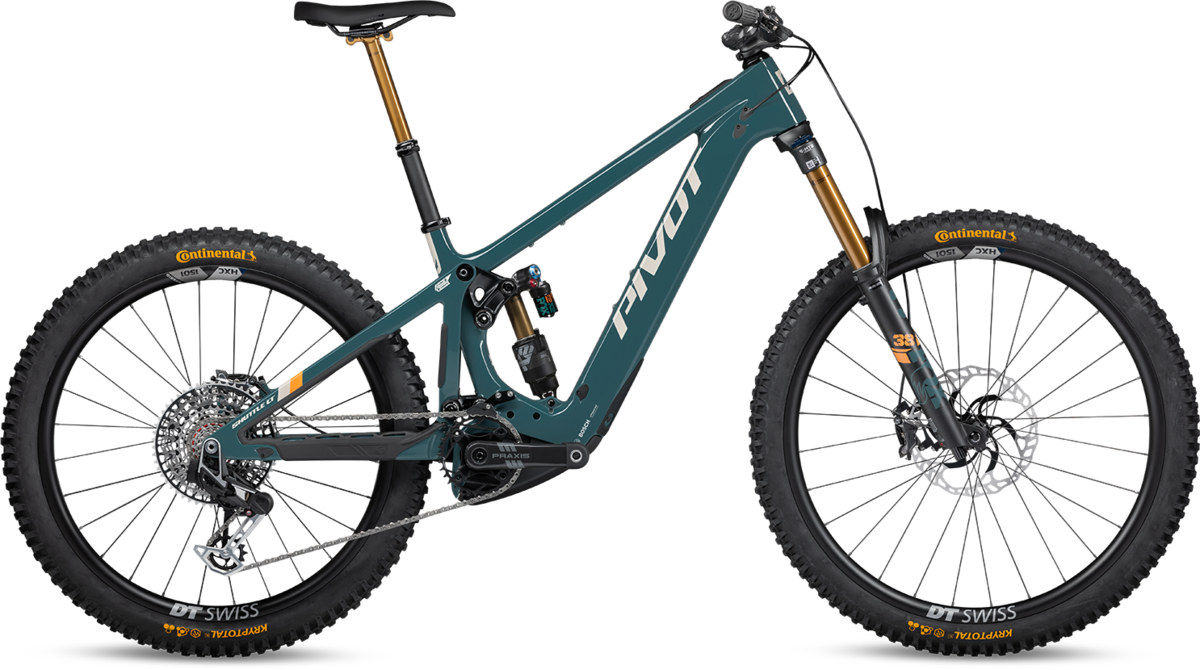

Pivot Cycles Shuttle LT Team XX Eagle Transmission
Details
More Power With More Finesse
The Shuttle LT is the embodiment of versatility and power. Its combination of the Bosch Race motor and dw-Link suspension equips you for any ride, from gravity-fueled descents to lung-busting climbs. Paired with powerful Shimano 4-piston brakes and massive rotors, it delivers exceptional stopping power and precision control on every trail. With the Shuttle LT, you're not just ready for the trail ahead—you’re set to dominate it.
- Full Carbon Frame Constructed with Pivot's Proprietary Molding Technology
- Bosch Performance CX Race Limited Edition drive unit on every build level
- Power-packed 750Wh Battery
- Bosch PowerMore 250 Range Extender Compatible
- Adjustable Geometry via Pivot Flip-Chip
- 170mm Fox 38 Fork
- 160mm Rear Wheel Travel
- 223mm Front and 203mm Rear Rotors
- Mixed-wheel setup
- Clean Internal Routing with Pivot Cable Port System

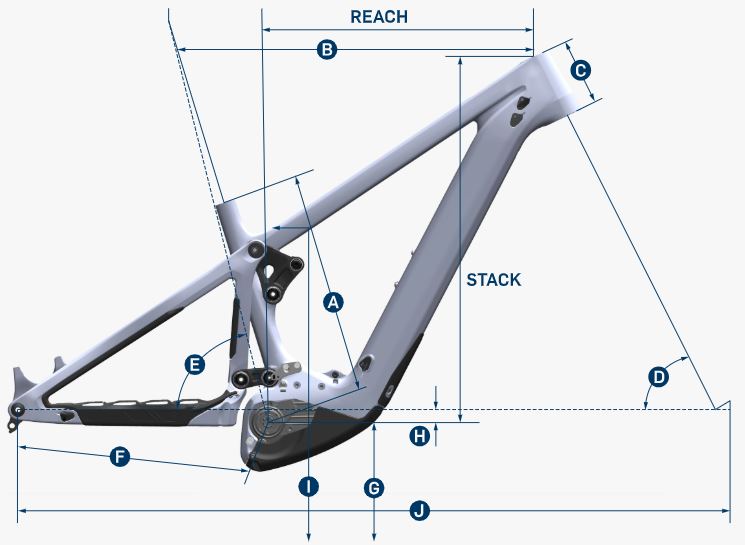

| SM | MD | LG | XL | |
|---|---|---|---|---|
| Seat Tube Length (C-T) | 37 cm | 40 cm | 43 cm | 47 cm |
| Top Tube Length | 60.7 cm | 63.2 cm | 65.2 cm | 67.0 cm |
| Head Tube Length | 11 cm | 12 cm | 13 cm | 14 cm |
| Head Tube Angle | 63.6° | 63.6° | 63.6° | 63.6° |
| Seat Tube Angle (Eff.) | 76.1° | 76.1° | 76.5° | 77° |
| Chainstay Length | 43.9 cm | 43.9 cm | 43.9 cm | 43.9 cm |
| Bottom Bracket Height | 34.4 cm | 34.4 cm | 34.4 cm | 34.4 cm |
| Bottom Bracket Drop | 1.8 cm | 1.8 cm | 1.8 cm | 1.8 cm |
| Standover Height | 69.4 cm | 69.8 cm | 70.0 cm | 70.1 cm |
| Wheelbase | 123.1 cm | 125.7 cm | 128.2 cm | 130.8 cm |
| Stack | 63.9 cm | 64.8 cm | 65.7 cm | 66.6 cm |
| Reach | 44.1 cm | 46.4 cm | 48.4 cm | 50.6 cm |
To ensure the best sizing, we recommend that you visit your local Pivot dealer to get a professional fit and refer to our geometry chart to check your measurements. We can, however, provide a rough guideline to get you started. These recommendations are based on our experience, athlete preference and customer feedback:
| Small | 5'3" – 5'8" |
|---|---|
| Medium | 5'7" – 6'0" |
| Large | 5'10" – 6'2" |
| X-Large | 6'1" + |
We suggest that you pick your Shuttle LT size based on your riding style. The Shuttle LT features enduro bike long and low geometry with shorter seat tube measurements per size – this geometry means that most riders can go up or down a size and should base their choice on riding-style, reach and stem length preferences. Be sure to also consult our dropper post fit guide when making your selection.
Specs
| Frame | Shuttle LT |
|---|---|
| Fork | Fox Factory 38 29", 44mm offset, GRIP X2 - 170mm |
| Rear Shock | Fox Factory Float X2 |
| Wheels | DT Swiss Hybrid HXC1501 Carbon, 30mm - Mixed 15x110 F/12x157 R |
| Tires | Continental Kyrptotal-F 29" x 2.4" Soft Compound Enduro Casing/Continental Kyrptotal-R 27.5" x 2.6" Soft Compound Enduro Casing |
| Crankset | Praxis Carbon eCranks E-MTB 34t - 160mm |
| Shifters | Sram AXS Pod Controller |
| Rear Derailleur | Sram XX Eagle Transmission 12-Speed |
| Cassette/Freewheel | Sram XX 1297 Eagle Transmission 10-52t |
| Chain | Sram XX Eagle Flattop 12-Speed |
| Brakes | Sram Maven Ultimate 4-piston |
| Rotors | Galfer Wave 6 Bolt - 223mm/Galfer Wave 6 Bolt - 203mm |
| Handlebars | Phoenix Race Low Rise Carbon - 780mm (SM-MD), 800mm (LG-XL) |
| Tape/Grips | Phoenix Factory Lock-On |
| Stem | Phoenix Team Enduro/Trail - 45mm |
| Headset | Pivot Precision Sealed Cartridge |
| Seatpost | Fox Transfer Factory Series 125-150mm (SM), 155-180mm (MD-LG), 185-210mm (XL) |
| Saddle | Phoenix WTB Hightail Trail Team (SM), Phoenix WTB Volt Team (Medium Width) (MD), Pivot Pro E-Bike (LG-XL) |
| Motor | Bosch Performance CX Race Edition 750wh |
* Subject to change without notice.
Videos
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Willow Green / Small / 29-inch front / 27.5-inch rear | 196338240680 | 25SLTV2MXCXXB--WGNSMDRPFNSA1 | |
| Willow Green / Medium / 29-inch front / 27.5-inch rear | 196338240635 | 25SLTV2MXCXXB--WGNMDDRPFNSA1 | MXCXXBWGNMDDRPFNS |
| Willow Green / Large / 29-inch front / 27.5-inch rear | 196338240581 | 25SLTV2MXCXXB--WGNLGDRPFNSA1 | |
| Willow Green / X-Large / 29-inch front / 27.5-inch rear | 196338240734 | 25SLTV2MXCXXB--WGNXLDRPFNSA1 | |
| Blue Scrub Jay / Small / 29-inch front / 27.5-inch rear | 196338240499 | 25SLTV2MXCXXB--BSJSMDRPFNSA1 | |
| Blue Scrub Jay / Medium / 29-inch front / 27.5-inch rear | 196338240444 | 25SLTV2MXCXXB--BSJMDDRPFNSA1 | |
| Blue Scrub Jay / Large / 29-inch front / 27.5-inch rear | 196338240390 | 25SLTV2MXCXXB--BSJLGDRPFNSA1 | MXCXXBBSJLGDRPFNS |
| Blue Scrub Jay / X-Large / 29-inch front / 27.5-inch rear | 196338239592 | 25SLTV2MXCXXB--BSJXLDRPFNSA1 |
