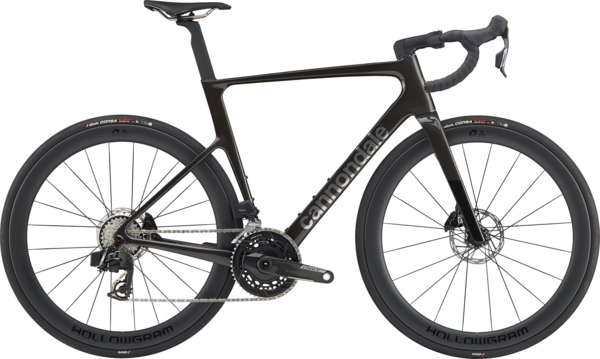

Cannondale SuperSix EVO 1 - Free Shipping

Cannondale SuperSix EVO 1 - Free Shipping
  • Color: Raw
$6,159.30 - $8,799.00
$8,799.00
Color: Raw
Size: Select size
Wheel Size: 700c
Please select options Unavailable

Details

The SuperSix EVO destroys expectations. So light, so fast, and so aero, it defies logic. This is a machine built to make you faster everywhere. Speed has evolved.

- Lightweight, low-drag SuperSix EVO carbon frameset – the ideal blend of speed, handling and comfort

- New SRAM Force AXS 12-speed – precise, programmable shifting from SRAM’s penultimate wireless electronic group

- HollowGram R-S 50 carbon wheels - co-developed with the SuperSix EVO, these wheels offer a great balance of weight and aerodynamics

- SRAM Force hydraulic disc brakes – great power and modulation for unmatched control

- Vision Trimax Carbon Aero handlebars -light, ergo, and aero

Frame Size44cm48cm51cm54cm56cm58cm61cm
Wheel size 700c 700c 700c 700c 700c 700c 700c
Seat tube length (cm / in) 40.0 / 15.75 43.8 / 17.24 47.7 / 18.78 51.5 / 20.28 53.4 / 21.02 56.7 / 22.32 60.0 / 23.62
Top tube horizontal (cm / in) 51.2 / 20.16 52.0 / 20.47 52.8 / 20.79 54.6 / 21.50 56.2 / 22.13 57.8 / 22.76 60.3 / 23.74
Top tube actual (cm / in) 46.9 / 18.46 47.9 / 18.86 48.9 / 19.25 50.9 / 20.04 52.3 / 20.59 54.1 / 21.30 56.4 / 22.20
Head tube angle (degree) 70.9 71.2 71.2 71.2 73 73 73
Seat tube angle (degree) 74.3 74.3 74.3 73.7 73.3 72.9 72.3
Standover (cm / in) 69.8 / 27.48 72.7 / 28.62 75.6 / 29.76 78.8 / 31.02 80.7 / 31.77 83.6 / 32.91 86.6 / 34.09
Head tube length (cm / in) 10.0 / 3.94 11.4 / 4.49 13.0 / 5.12 15.4 / 6.06 16.5 / 6.50 18.8 / 7.40 22.0 / 8.66
Wheelbase (cm / in) 98.1 / 38.62 98.7 / 38.86 99.6 / 39.21 101.0 / 39.76 99.4 / 39.13 100.7 / 39.65 102.4 / 40.31
Front center (cm / in) 58.2 / 22.91 58.9 / 23.19 59.8 / 23.54 61.1 / 24.06 59.4 / 23.39 60.7 / 23.90 62.4 / 24.57
Chain stay length (cm / in) 41.0 / 16.14 41.0 / 16.14 41.0 / 16.14 41.0 / 16.14 41.0 / 16.14 41.0 / 16.14 41.0 / 16.14
Bottom bracket drop (cm / in) 7.4 / 2.91 7.4 / 2.91 7.4 / 2.91 7.2 / 2.83 7.2 / 2.83 6.9 / 2.72 6.9 / 2.72
Bottom bracket height (cm / in) 26.8 / 10.55 26.8 / 10.55 26.8 / 10.55 27.1 / 10.67 27.1 / 10.67 27.3 / 10.75 27.3 / 10.75
Fork rake (cm / in) 5.5 / 2.17 5.5 / 2.17 5.5 / 2.17 5.5 / 2.17 4.5 / 1.77 4.5 / 1.77 4.5 / 1.77
Trail (cm / in) 6.0 / 2.36 5.8 / 2.28 5.8 / 2.28 5.8 / 2.28 5.8 / 2.28 5.8 / 2.28 5.8 / 2.28
Stack (cm / in) 50.5 / 19.88 52.0 / 20.47 53.5 / 21.06 55.5 / 21.85 57.5 / 22.64 59.5 / 23.43 62.5 / 24.61
Reach (cm / in) 37.0 / 14.57 37.4 / 14.72 37.8 / 14.88 38.4 / 15.12 38.9 / 15.31 39.5 / 15.55 40.3 / 15.87
Frame Size48cm51cm54cm56cm58cm61cm
Rider height (cm / in) 160–170 / 63–67 165–175 / 65–69 170–180 / 67–71 178–185 / 70–73 183–193 / 72–76 191–201 / 75–79

Specs

Frame SuperSix EVO Carbon, integrated cable routing w/ Switchplate, 12x142 Syntace thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense compatible
Fork SuperSix EVO Carbon, integrated crown race, 12x100mm Syntace thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
Rims HollowGram R-S 50, Carbon, 20h front, 24h rear, 50mm deep, 21mm inner width, tubeless ready
Hubs Front: HollowGram, sealed bearing 12x100mm centerlock Rear: HollowGram, 12x142mm centerlock w/ DT Swiss 240 internals
Spokes Formula Grand Forza, Double Butted, straight pull
Tires Vittoria Corsa N.EXT, 700x28c, tubeless ready
Bottom Bracket SRAM DUB BSA
Crankset SRAM Force AXS Power Meter, 48/35
Front Derailleur SRAM Force AXS, braze-on
Rear Derailleur SRAM Force AXS
Chain SRAM Force, 12-speed
Brakes SRAM Force AXS hydraulic disc, 160/160mm PaceLine centerlock rotors
Brake Levers SRAM Force AXS hydraulic disc
Handlebars Vision Trimax Carbon Aero
Tape/Grips Cannondale Bar Tape, 3.5mm
Stem Cannondale C1 Conceal, Alloy, 31.8, -6°
Headset Integrated, 1-1/8" - 1-1/4"
Seatpost Cannondale C1 Aero 40 Carbon, 0mm offset (44-48cm), 20mm offset (51-61cm)
Saddle Prologo Dimension TiRox NDR

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Raw / 48cm / 700c 196870188235 C11035U1048 C11035U1048
Raw / 51cm / 700c 196870188242 C11035U1051 C11035U1051
Raw / 54cm / 700c 196870188259 C11035U1054 C11035U1054
Raw / 56cm / 700c 196870188266 C11035U1056 C11035U1056
Raw / 58cm / 700c 196870188273 C11035U1058 C11035U1058
Raw / 61cm / 700c 196870188280 C11035U1061 C11035U1061
Raw / 44cm / 700c 196870188228 C11035U1044
